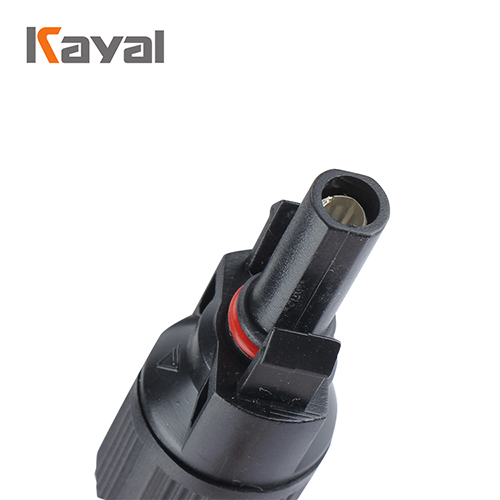

| Model Number: Solar-CMMM-14 ip67 cable connector solar |
| · Type: Solar connector |
| · Application: solar power ip67 cable connector solar |
| · Gender: Male & Female ip67 cable connector solar |
| · Rated current: 30A |
| · Withstanding Voltage: 1000vdc of ip67 cable connector solar |
| · Contact Resistance: ≤0.3mΩ |
| · Protection class: Class II |
| · Temperature Range: -40 C~+90C |
| · Protection Degree: IP67 ip67 cable connector solar |
| · Unmating Force: 200 Newton ip67 cable connector solar |
| · Contact material: Copper,silver plated of ip67 cable connector solar |
| IP67 cable solar connector solar power system male and female cable connectors,solar cable connector |
| ip67 solar connector |
| · Simple on-site processing. |
| · Acomodates PV cable with different insulation diameters. |
| · Mating safety provided bykeyed housings. |
| · Multiple plugging and unplugging cycles . |
| · High current carrying capacity. |
| · TUV and UL approved. |

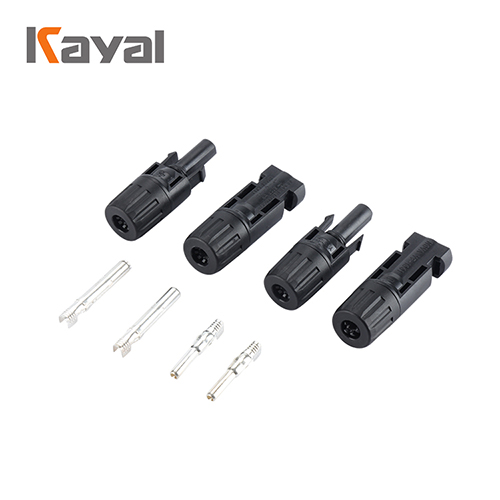

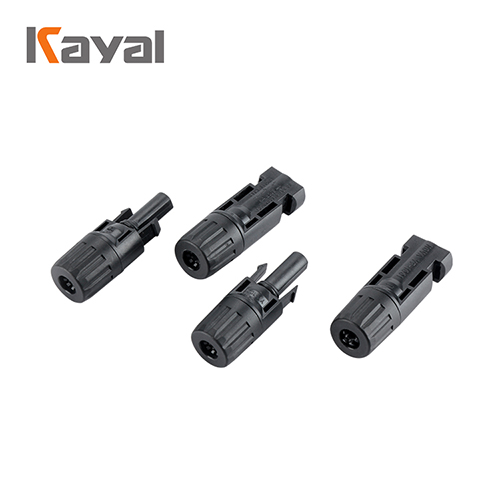

| Samlex's Solar-2 Kit contains 1 male and 1 female solar panel connector. IP67 cable solar connector |
| solar power system male and female cable connectors,solar cable connector ip67 solar connector is easy to install and |

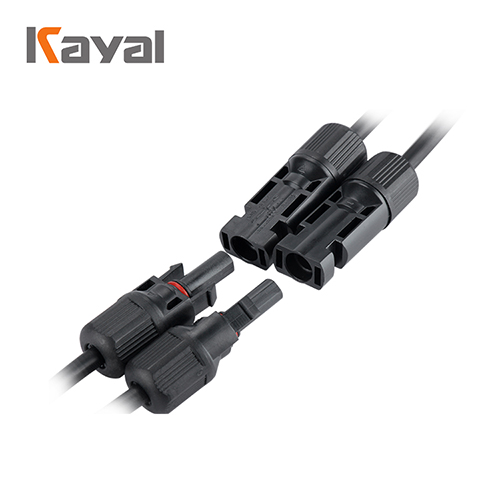

| uses “snap in” safety locking tabs to lock two mating connectors, thereby avoiding unintentional disconnection. |
| Also when IP67 cable solar connector solar power system male and female cable connectors, |
| solar cable connector ip67 solar connector locked,the mating |
| contacts are sealed against ingress of dust and water. |
| Specifications are as follows |
| IP67 cable solar connector solar power system male and female cable connectors, |
| solar cable connector ip67 solar connector |
| •Connectors supplied with this kit are for use with wire size AWG # 10 or AWG # 12 with |
| outer insulation diameter of 3 – 6 mm |
| •Contact diameter -4 mm |
| •Maximum rated current - 30 A |
| •Maximum system voltage - 1000 V |
| •Degree of ingress protection when connected and properly locked - IP67 |
| •Temperature range 40°C to +90°C |
| •TUV Rheinland – type approved, UL listed. |
