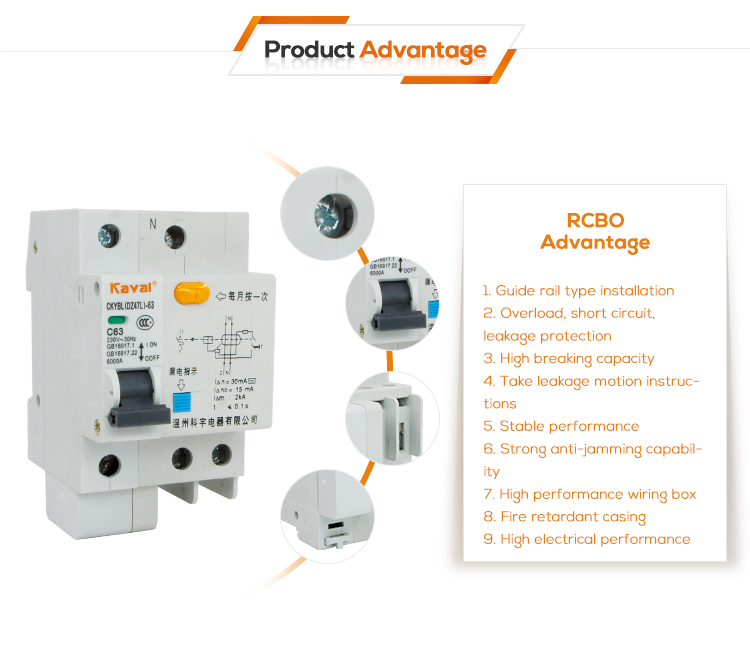

ADVANTAGE

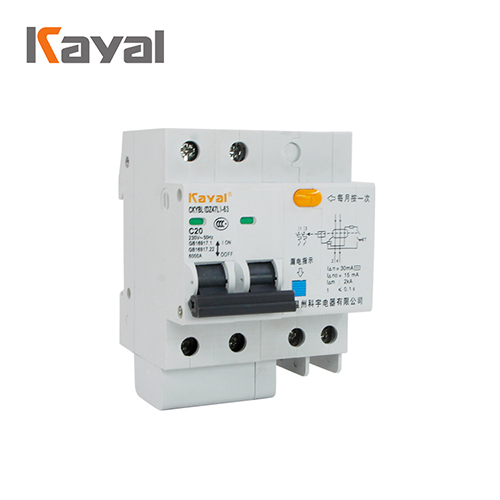

● Residual Current Circuit Breaker With Overcurrent Protection
●Electronic type
●Compact structure, small volume, (two modules in width)
●With short circuit, overload and residual current protection
●Action function has nothing to do with main circuit voltage
●With midline cut-off functions, it is safer and more reliable.
●With double functional connection terminals, it has strong connection ability.
●With contact state indicator, it is easy to recognize the contact situation.
●Different handle colors are used to indicate different rated current.
●High breaking capacity:10KA
●With wide range of rated current, it can be used as family main switch
●United accessories series
●Type c can provent the error tripping caused by electric equipment
SPECIFICATI
| Pole No. | 2 Pole |
| Standards | IEC1008(EN61009)GB16917 |
| Rated Current | Type C6,10,13,16,20,25,32,40A Type D6,10,13,16,20A |
| Rated eakage Current I | 30,100ma |
| Rated Voltage(Ue) | 230V;50Hz |
| Tripping Time | G Minimum 10ms for prolonging |
| Sensitivity | A type |
| Type | 3 |
| Breaking Capacity Icn | 10KA |
| Tripping Characteristic | C,D |
| Grade of Protection | IP40 |
| Service Life | Electric:no less than 4000 timesMachanic:no less than 20000 tim |
| Terminal Connection | Wire 1-25 square micron Bus-bar row thickness 0.8-2mm |
| Shell width | Din Rail 35mm(Two modulus in widtth) |
