Suitable for city power solar system electrical equipment
Input reverse connection protection by fuse
Design efficiency
Pure Sine Wave

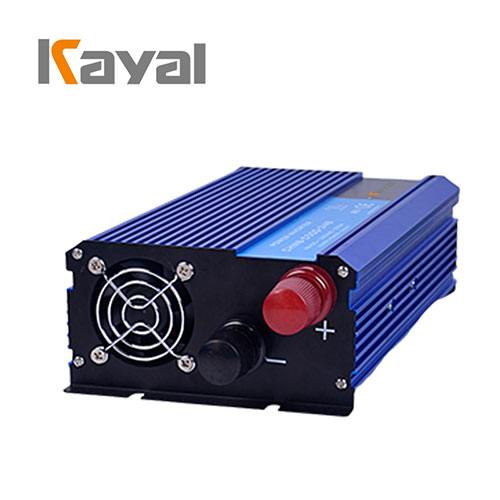

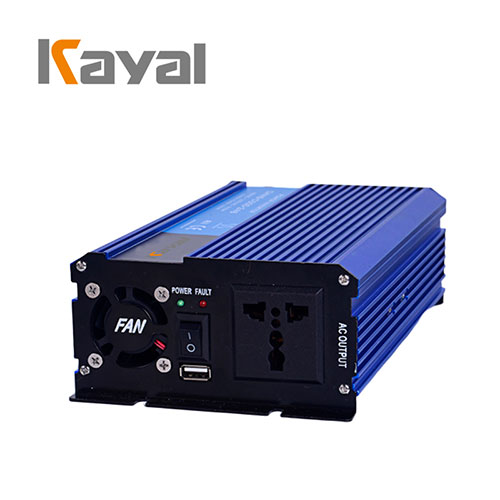

| KAYAL lnverter | KYNB-C1000 |
| OUTPUT RATED POWER(W) | 1000W |
| OUTPUT SURGE POWER(W) | 2000W |
| WAVE | Pure Sine Wane |
| WAVE DISTORTION | 0.03 |
| FREQUENCY | 50/60 HZ |
| DC INPUT | 12V/24V/48V/60V |
| AC OUTPUT | 110V/220V |
| CHARGING MODE | When the power is off,it will switch to the inverter automatically 40ms-60ms |
| PROTECTION | LOW VOL.ALARM LOW VOL. SHUT DOWN OVERLOAD PROTECTION OVER VOL. SHUT DOWN OVERHEAT PCOTECTION |
| STANDARD |
Compliance with CE,FCC,CNAS,ROHS ANSI C63_4: 2014,EN60950-1, EN55032. EN161000-3-2, EN61000-3-3, EN 55024 |
| PRODUCT SIZE(MM) | 342*166*90 |
| NET.Q(G) | 2846 |
| GROSS W/(G) | 3400 |
| ACCESSORIES | FUSET,CABLES WITH CLIPS |
