220V Contactor Relay for Offices and Homes
Application

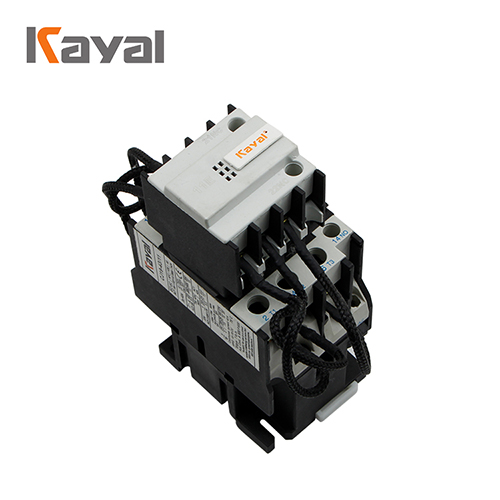

CJ19(16) AC Contactor series change-over capacitor type contactors mainly include CJ19B-32, 43, and are suitable for the electric power system of AC 50Hz or 60Hz, main circuit voltage to 380V for making and breaking of self- coupling low-voltage parallel capacitor with controllable capacitor up to 30kvar in the power factor compensating device, which can effectively reduce impulsion of switching rush current to capacitor and control the over-voltage when start the circuit.
SPECIFICATIONS
| Type | CJ19-32 CJ16-32 |
CJ19-32 CJ16-43 |
CJ19B-32 CJ16C-32 |
CJ19B-32 CJ19C-43 |
CJ19B-63 CJ19C-63 |
| Controlled Capacity | 18(16) | 20 | 15 | 20 | 32 |
| 400V Rated voltage(A) | 26(23) | 29 | 21.6 | 29 | 46 |
| Working current 1.3In A | 33.8(30) | 37.7 | 28 | 37.7 | 60 |
|
Conventional heating current Ith A |
32 | 43 | 32 | 43 | 69 |
|
Controlling capability to flashy flow |
|||||
| Coil Working voltage Us 50Hz V |
220,380or according to user erqurements |
||||
| Coil Operating range | 0.85~1.1Us | ||||
| Coil Consumed power(VA) | 68 | 68 | 115 | 115 | 200 |
| Coil start holding | 12 | 12 | 11 | 11 | 20 |
|
Rated current for short-circuit protected fuse |
1.5~2.5In | ||||
| Rated insulation voltage Ui 50Hz V | 500 | 500 | 500 | 500 | 650 |
|
Conventional heating curent of auxillary contacts AC 15A |
10 | 10 | 10 | 10 | 10 |
| Mechanical life ten thousand times | 100 | 100 | 100 | 100 | 80 |
|
Elechanical life operating frequency 1201/h ten thousand times |
10 | 10 | 10 | 10 | 8 |
| Weight(kg) | About0.58 | About0.58 | About0.57 | About0.6 | About1.25 |
